Equipment: Lift Table With Double Reach And Polyurethane Wheels.
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000



Model:
LTD-770R, 770 lbs. capacity.
Characteristics:
Please click on the following thumbnails to see larger images.

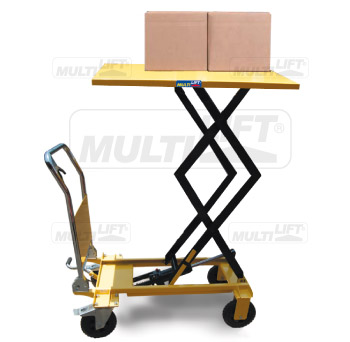

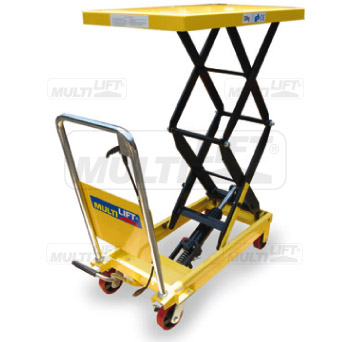

Lift table with double scissor and polyurethane wheels.
Capacity 770lbs., Min. height. 13.77”, Max height: 51.18”.
Lift truck dimensions 19.68” x 35.82”

The highest of the entire lift table. Its double reach allows to work until 51.18”. Its polyurethane wheels allow a soft and silent handling.



ISO 9001 CERTIFICATIONS

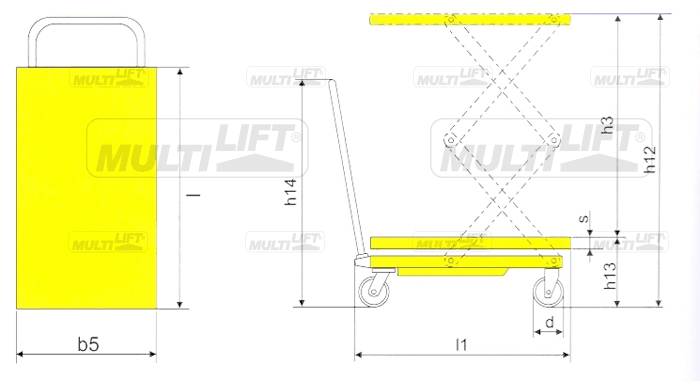

Specifications:
Model
LTD-770R
Capacity:
350 kg / 770 lbs.
Lowered height (h13):
343 mm / 13.5"
Raised height (h12):
1308 mm / 51.5"
Table size A x L:
502 mm x 904 mm
19.75 " x 36"
Overall size A x L:
502 mm x 1168 mm
19.75 " x 46"
Weight:
120 kg / 265 lbs
Height with handle (h14):
991 mm / 39"
Wheels (d):
127 mm / 5"
