Patines Hidraulicos estandar

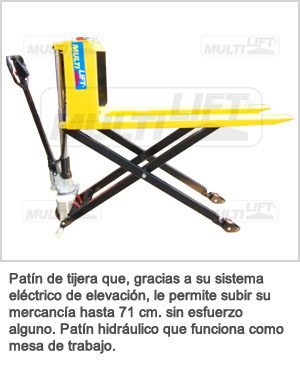

Equipment: Electric High Lift Hand Pallet Truck
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000

Model:
ELP-2200N 2.200 lbs. capacity
Characteristics:
Please click on the following thumbnails to see larger images.








ISO 9001 CERTIFICATIONS

Specifications:


  • Model: ELP-2200N
  • Load Capacity: 2,200lbs
  • Forks: 48.8”l long (L) – 27” wide (W)
  • Fork width: 6.30” (F)
  • Lowered height of forks: 3.3” (LHF)
  • Raised height of forks: 28.15” (F)
  • Overall assembled height: 48”
  • Voltage/Amp: 12V / 100AH
  • Weight with battery: 399lbs
  • Weight of the battery: 68lbs
  • Paint: High Resistant Enamel
  • Load Wheels: Tandem nylamid
  • Steer Wheels: Nylamid
    - Handle with three positions

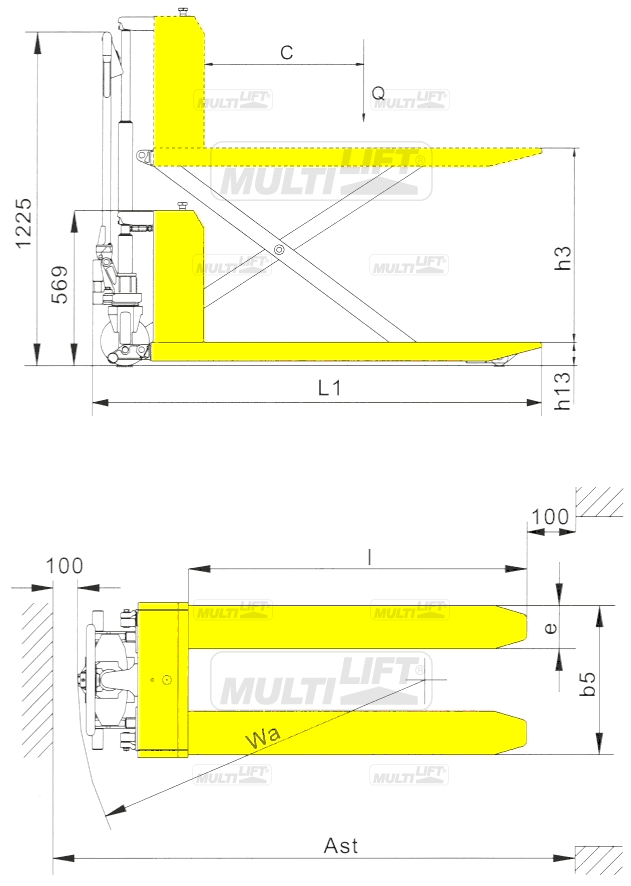

Fork
Length
48.8"
(1240mm)
Overall
Width
27"
(685mm)
Fork
Width
6.30"
(160mm)
Lowered Height
of Forks
3.30"
(85mm)
Raised Height
of forks
28.15"
(715mm)



Contact Multilift Manufacturing Co. Authorized Dealers
