Characteristics:
Please click on the following thumbnails
to see larger images. |
| |
|
* SepEx is a registered trademark of Curtis Controls Inc.
ISO 9001 CERTIFICATIONS |
|

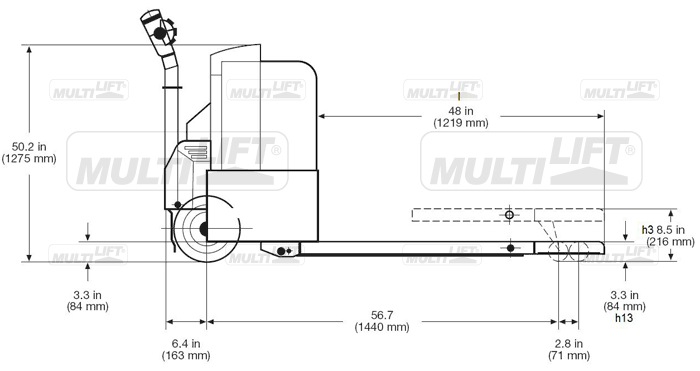

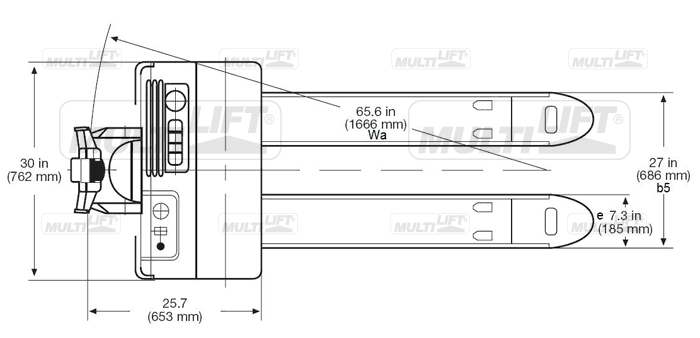

Specifications:
|

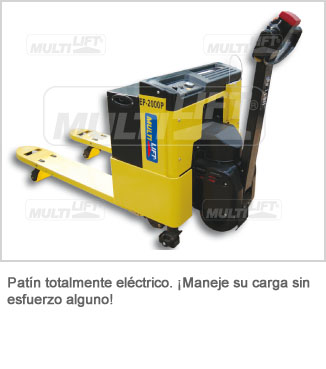

- Model: EP-2863P
- Load Capacity: 2,863lbs
- Forks: 39.4”(l1) long – 20.5” wide (b1)
- Overall width (B): 704mm (27.7”)
- Overall length: 1,420mm (55.9”)
- Cushion steer wheel with high quality
- Polyurethane Load wheels with entry rollers.
- Ergonomic handle with lift and down control.
- Fork width: 6.3” (e)
- Lowered height of forks: 2.9” (H1)
- Raised height of forks: 7.64” (H2)
- Turning radius: (WA) 48.6”
- Voltage/Amp: 24V / 70AH
- Weight with battery: 643lbs
- Weight of the battery: 105lbs
- Paint: High Resistant Enamel
|
|
Fork
Length |
39.4"
(1000mm) |
|
Overall
Width |
20.5"
(520mm) |
|
Fork
Width |
6.3"
(160mm) |
|
Lowered
Height
of Forks |
2.9"
(74mm) |
|
Raised
Height
of forks |
7.64"
(194mm) |
|
