Characteristics:
Please click on the following thumbnails
to see larger images. |
| |
|
* SepEx is a registered trademark of Curtis Controls Inc.
ISO 9001 CERTIFICATIONS |
|
Specifications:
|
- Model: EP-4400P
- Load Capacity: 4,400lbs
- Forks: 48”(l) long – 27” wide (b5)
- Overall width: 762mm (30”)
- Overall length: 1,872mm (73.7”)
- Cushion steer wheel with high quality
- Polyurethane Load wheels with entry rollers.
- Ergonomic handle with lift and down control.
- Fork width: 7.3” (e)

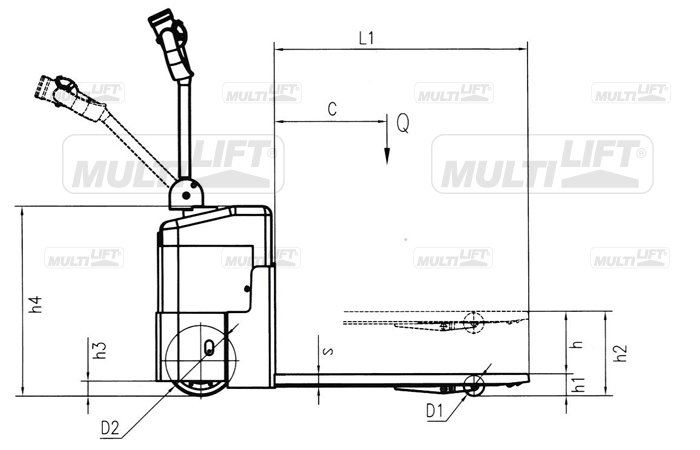

- Lowered height of forks: 3.3” (H13)
- Raised height of forks: 8.5” (H3)

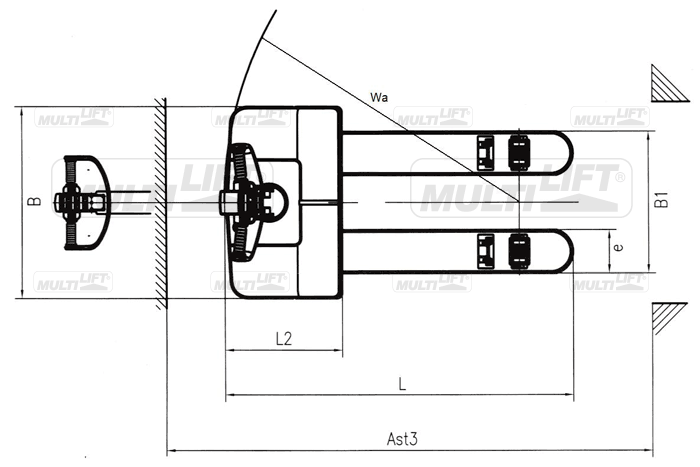

- Turning radius: (WA) 65.6”
- Voltage/Amp: 24V / 210AH
- Weight with battery: 1,256lbs
- Weight of the battery: 396lbs
- Paint: High Resistant Enamel
|
|
Fork
Length |
48"
(1220mm) |
|
Overall
Width |
27"
(685mm) |
|
Fork
Width |
7.3"
(185mm) |
|
Lowered
Height
of Forks |
3.30"
(85mm) |
|
Raised
Height
of forks |
8.5"
(216mm) |
|
