han
Apiladores  Electricos
Equipment: Semi-electric Straddle Stacker
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000

Model:
HSEW-2200N, 2.200 lbs. capacity


Characteristics:
Please click on the following thumbnails to see larger images.







ISO 9001 CERTIFICATIONS

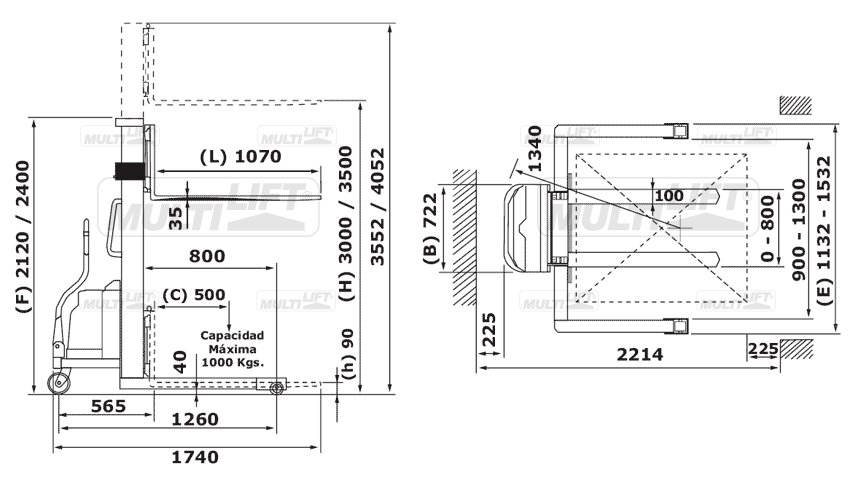

Specifications:


MODEL
HSEW-2200N
Capacity
lb.
2200
Lifting height (H)
in.
118
Load center (C)
in.
20
Lowered fork height (X)
in.
3.5
Fork lenght (L)
in.
42
Fork width (each)
in.
4
Lifting speed with full loads
in.
133 in./time
Lowering speed
in.
Lenght without forks (A)
in.
59
Overall width (E)
in.
58.5
Outrigger ID
in.
49.25
Rear width (B)
in.
28.5
Overall height (F)
in.
82
Net weight
lb.
980

Contact Multilift Manufacturing Co. Authorized Dealers
