Patines Hidraulicos estandar
Equipment: High Lift Hand Pallet Truck
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000

Model:
HLP-2200P 2.200 lbs. capacity
Characteristics:
Please click on the following thumbnails to see larger images.












ISO 9001 CERTIFICATIONS

Specifications:


  • Model: HLP-2200P
  • Load Capacity: 2,200lbs
  • Forks: 45.3”l long (L) – 27” wide (W)
  • Fork width: 6.30” (F)
  • Lowered height of forks: 3.3” (LHF)
  • Raised height of forks: 32.1” (F)
  • Overall assembled height: 48.4”
  • Approximate weight: 256lbs
  • Paint: High Resistant Enamel
  • Load Wheels: Tandem steel
  • Steer Wheels: Polyurethane
  • Handle with three positions
  • Width inside of forks: 14.37”

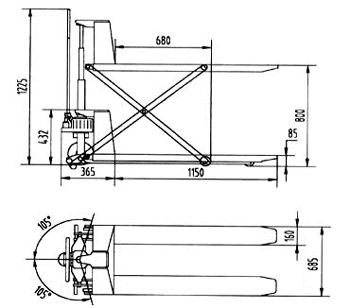

Fork
Length
45.3"
(1150mm)
Overall
Width
27"
(685mm)
Fork
Width
6.30"
(160mm)
Lowered Height
of Forks
3.3"
(85mm)
Raised Height
of forks
32.1"
(815mm)
