Patines Hidraulicos estandar

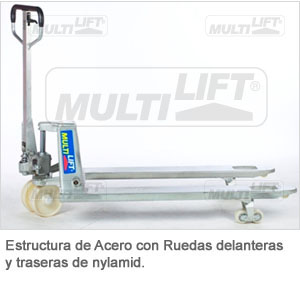

Equipment: Galvanized hand pallet truck
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000

Model:
PSG-6000N 6,000 lbs. capacity.

Characteristics:
Please click on the following thumbnails to see larger images.














ISO 9001 CERTIFICATIONS

Specifications:

  • Model: PSG-6000N
  • Load Capacity: 6,000lbs
  • Forks: 48”l long (L) – 27” wide (W)
  • Fork width: 6.3” (F)
  • Lowered height of forks: 3.3” (LHF)
  • Raised height of forks: 7.88” (F)
  • Angle turn: 215
  • Overall assembled height: 48”
  • Overall body length: 62”
  • Approximate weight: 171lbs
  • Paint: Galvanized
  • Wheels: tandem nylamid
  • Handle with three positions.
Fork
Length
48"
(1220mm)
Overall
Width
27"
(685mm)
Fork
Width
6 5/16"
(160 mm)
Lowered Height
of Forks
3.3"
(85mm)
Raised Height
of forks
7.88"
(200mm)
