Patines Hidraulicos estandar

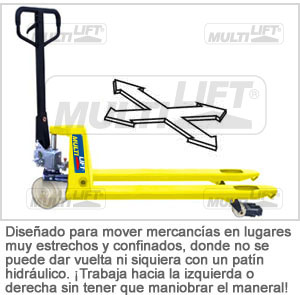

Equipment: Multidirectional Hand Pallet Truck
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000

Model:
PSM-5000N
5,000 lbs. capacity.
Characteristics:
Please click on the following thumbnails to see larger images.















ISO 9001 CERTIFICATIONS

Specifications:



  • Model: PSM-5000N
  • Load Capacity: 5,000lbs
  • Forks: 48”l long (L) – 27” wide (W)
  • Fork width: 6.30” (F)
  • Lowered height of forks: 2.9” (LHF)
  • Raised height of forks: 8” (F)
  • Overall assembled height: 48”
  • Approximate weight: 156lbs
  • Paint: High Resistant Enamel
  • Load Wheels: Tandem nylamid
  • Steer Wheels: Nylamid
  • Handle with three positions

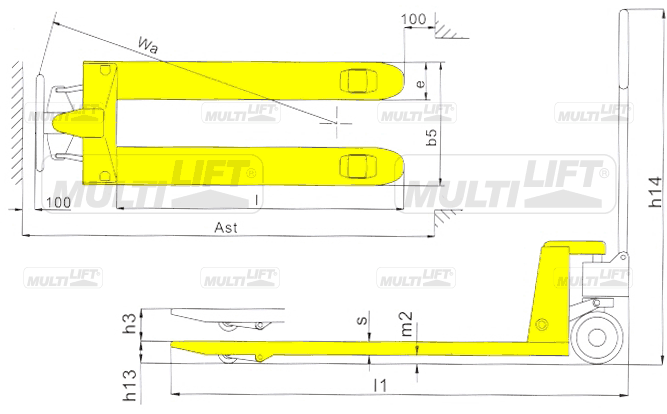

Fork
Length
48"
(1220mm)
Overall
Width
27"
(685mm)
Fork
Width
6.30"
(160mm)
Lowered Height
of Forks
2.90"
(75mm)
Raised Height
of forks
8"
(203mm)
