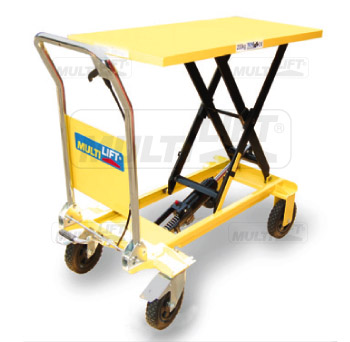

Equipment: Lift table with simple scissor and polyurethane wheels.
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000



Model:
LT-440R, 440 lbs. capacity.
Characteristics:
Please click on the following thumbnails to see larger images.


Lift table with single reach and natural oilcloth wheels.
Capacity 440lbs., Min. height. 13”, Max height: 39.4” and
dimensions table: 19.6” x 29.4”.

This lift table is perfect to work on irregular surfaces. Its higher wheels allow working on hard places.

“THE LIFT TABLE ALMOST ALL GROUND”



ISO 9001 CERTIFICATIONS

Specifications:
Model
LT-440R
Capacity:
200 kgs / 440 lbs
Table Dimensions:
Width (b5):
502 mm / 19.75"
Length (l):
1000 mm / 39.4"
Gross (s):
35 mm / 1.38"
General Dimensions:
Lowered height (h13):
330 mm / 13"
Raised height (h12):
1000 mm / 39.4"
Lift height (h3):
670 mm / 26.4"
Overall width (b5):
502 mm / 19.75"
Overall length (l1):
1,120 mm / 44.1"
Weight:
60 kg / 132 lbs
Height with handle (h14):
1,056 mm / 41.6"
Wheels (d):
203 mm / 8"
