Apiladores Manuales

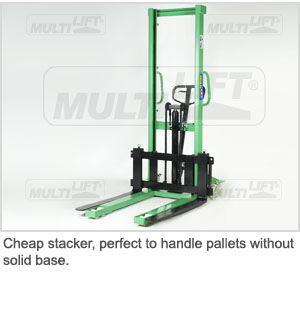

Equipment: Manual Stacker With Narrow Stablishers
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000



Model:
HMS-3300N, 3.300 lbs. capacity
Characteristics:
Please click on the following thumbnails to see larger images.






ISO 9001 CERTIFICATIONS

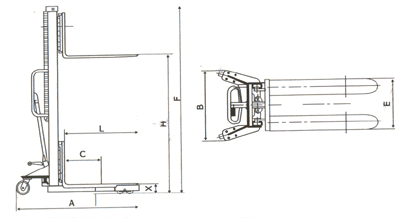

Specifications:



Model
HMS-3300N
Capacity
lbs.
3,300
Raised Height of forks
mm.
1600
Load Center
mm.
500
Lowered height of forks
mm.
65
Fork length
mm.
1070
Fork width
mm.
101
Lift speed
mm (time)
25
Lowering
Adjustable
Length to face of forks
mm.
1600
Overall width to outside of stablishers
mm.
660
Overall width to inside of stablishers
mm.
425
Overall width
mm.
910
Height Mast Extended
mm.
2090
Net Weight
lbs.
496
