Apiladores Manuales
Equipment: Manual Stacker Extra Light
Brand:
QUALITY CERTIFICATIONS
logo iso
ISO 9001               ISO 14001
logo iso
OHSAS18000


Model:
LMS-880, 8800 lbs. capacity
Characteristics:
Please click on the following thumbnails to see larger images.







ISO 9001 CERTIFICATIONS

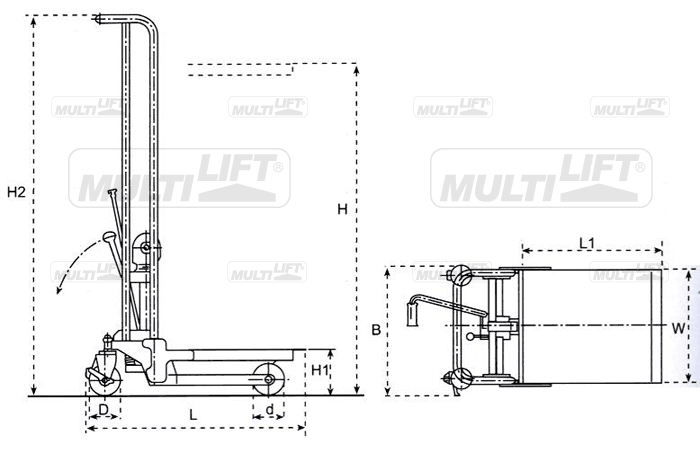

Specifications:



Model
LMS-880P
Capacity
lbs.
880
Raised Height of forks (H)
mm
1,700
Load Center (C)
mm
400
Lowered height of forks (H1)
mm
90
Platform length (L1)
mm
610
Platform width (W)
mm
550
Lift speed
mm (time)
25
Lowering
Ajustable
Overall Length   (L)
mm
1040
Overall width (B)
mm
590
Steer wheels diameter
mm
150
Load wheels diameter
mm
60
Overall height (H2)
mm
1810
Net Weight
lbs.
183
